Rover Robotics

Flipper Rover Pro

Flipper Rover Pro

Regular price $9,999.99 USD
Regular price Sale price $9,999.99 USD
Sale Sold out
Shipping calculated at checkout.

Note: All variants come with one battery and charger. Additional batteries, chargers, drive kits, and accessories can be purchased separately. You can also contact us for any custom configurations.

The Rover Pro was built to withstand any type of environment. With an IP67 rating these robots can be outside in any weather conditions. Perfect for development of an AMR fleet or deployment as a single UGV on a mission. The high-quality brush-less motors offer more longevity , higher torque and quieter operation than brushed motors. The high capacity military grade lithium ion battery is state of the art in both capacity, safety and reliability. The Rover Pro is our most popular robot with over 1,000 units shipped worldwide.

All our robot computers are configured with ROS2 Humble by default, if you need another configuration please let us know.

Getting Started

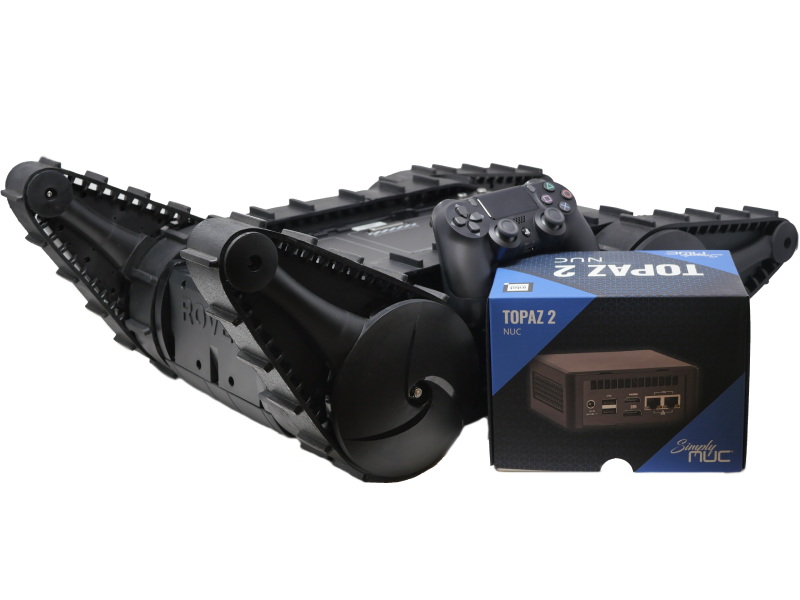

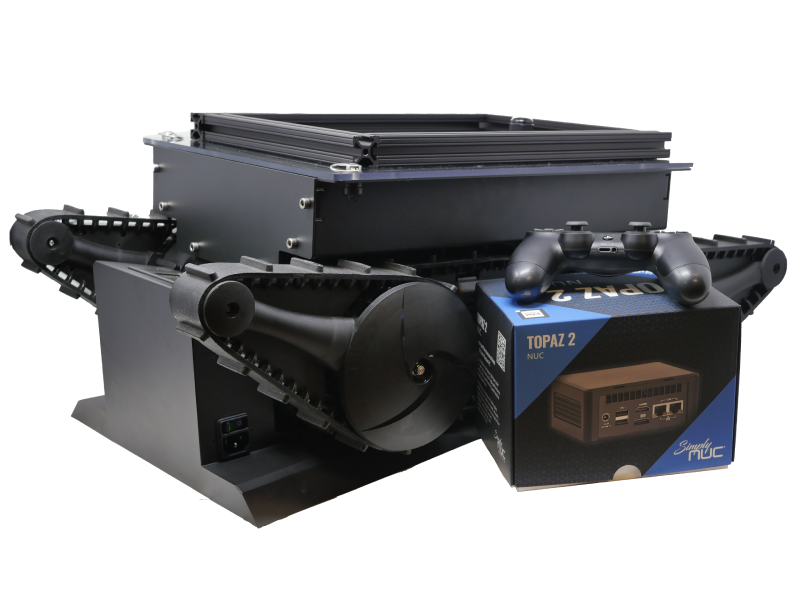

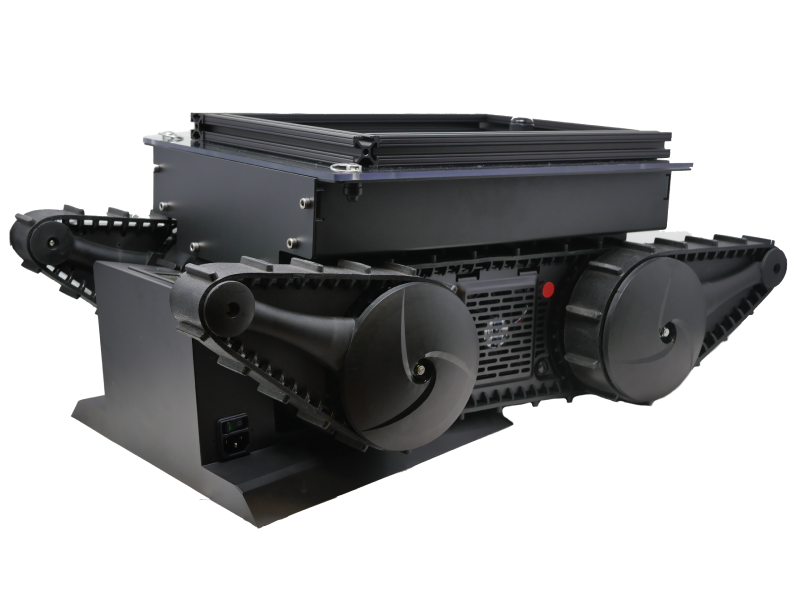

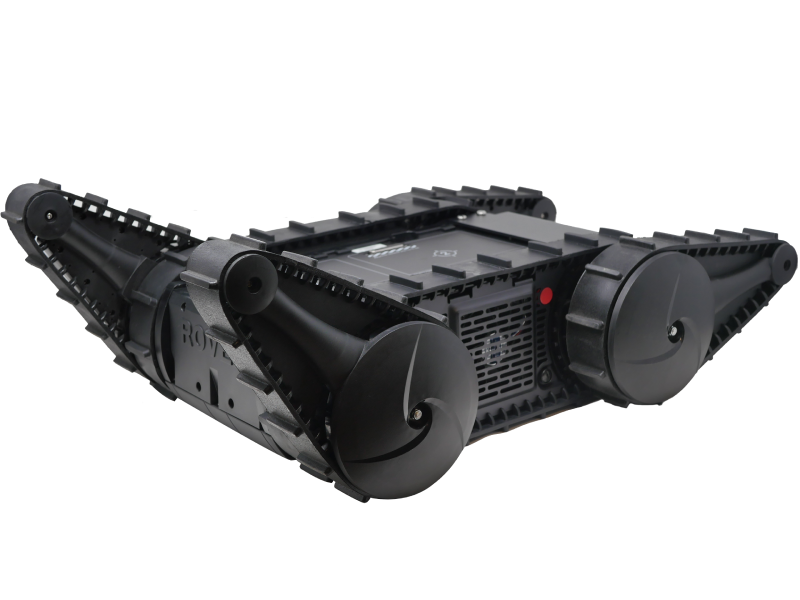

Flipper

The Three Motor Rover Pro is the perfect pair with the flipper drive kit. The third motor inside the robot powers the drive axle, allowing the flippers to actuate which lets the Rover Pro navigate all sorts of difficult terrain, power up curbs and steep inclines and even climb a standard staircase! The Flipper drive kit is easily swapped with a 4WD kit as well, so you can set up your Pro to navigate whatever environment you desire!

 Motors



The Rover Pros use high torque 2050KV in-runner brush-less sensored motors. By using brush-less motors it ensures our Rover Pros last a long time. In-runner simply refers to the fact that the rotor is in the middle. 2050KV refers to how fast the motor spins per volt that is applied. Lower values imply that the motor has more torque, and this is one of the lowest KV motors on the market, in fact we customize them to lower the KV rating. Sensored means that there is a built in hall effect sensor which allows the motor to spin start from a stop and spin slower than a sensor-less motor.

Battery

The Rover Pros use a military-grade high density lithium-ion battery pack with built in over-current and under-voltage protection, state of charge monitoring, temperature monitoring, current monitoring, and voltage monitoring. The operating voltage of the battery is 12V-16.8V. If more than 20A is ever pulled from the battery, it will shut itself off safely. All of the data from the battery is exposed with our ROS driver.



Description Value
Dimensions 68cm x 39cm x 25.4cm [24.4in x 15.4in x 10in]
Weight 11kg [25lbs]
Max Speed 2.5m/s [5.6mph]
Payload Capacity 50kg [110lbs]
Ground Clearance 0cm [0in]
Operating Temp -20C to 50C [0F to 120F]
Operation Time
2 hours drive time/5 hours idle
User Power Unregulated 12V-16.8V
Shaft Material Stainless Steel
Motors 2050KV inrunner Brush-less motors
IP Rating IP67


Quantity Discount Lead Time
0-4 0% 3-5 business days
5-9 3% 2-4 weeks
10-24 7% 4-6 weeks
25-49 12% 6-8 weeks
50-99 18% 8-10 weeks
100+ 25% 10-12 weeks
