Additional batteries, computers, drive kits, and accessories can be added separately, or you can contact us about any custom configuration you desire.
Note: The Nvidia NX Developer's Kit is currently on back order with a indefinite delay in procurement.)

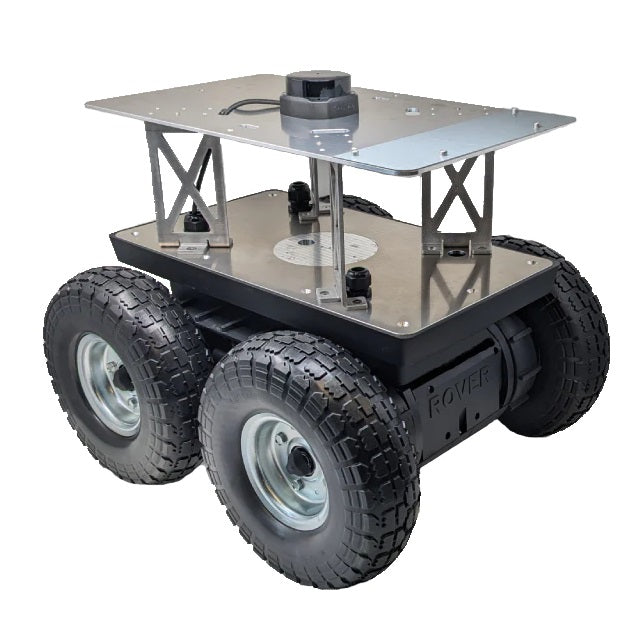

The Rover Pro was built to withstand any type of environment. With an IP67 rating these robots can be outside during any weather conditions. The high-quality brush-less motors offer more longevity , higher torque and quieter operation than brushed motors. The high capacity military grade lithium ion battery is state of the art in both capacity, safety and reliability. The Rover Pro is our most popular robot with over 1,000 units shipped worldwide.
The Rover Pros use high torque 2050KV in-runner brush-less sensored motors. That's a mouthful so lets breakdown what that means. There are two main types of DC motors, brushed and brushless. Brushes are a small strip of metal inside the motor that make contact from the rotor to the stator. These brushes wear out over time. By using brush-less motors it ensures our Rover Pros last a long time. In-runner simply refers to the fact that the rotor is in the middle. 2050KV refers to how fast the motor spins per volt that is applied. Lower values imply that the motor has more torque, and this is one of the lowest KV motors on the market, in fact we customize them to lower the KV rating. Sensored means that there is a built in hall effect sensor which allows the motor to spin start from a stop and spin slower than a sensor-less motor.
The Rover Pros use a military-grade high density lithium-ion battery pack with built in over-current and under-voltage protection, state of charge monitoring, temperature monitoring, current monitoring, and voltage monitoring. The operating voltage of the battery is 12V-16.8V. If more than 20A is ever pulled from the battery, it will shut itself off safely. All of the data from the battery is exposed with our ROS driver.
|Dimensions||62cm x 39cm x 25.4cm [24.4in x 15.4in x 10in]|
|Max Speed||2.5m/s [5.6mph]|
|Payload Capacity||100kg [220lbs]|
|Ground Clearance||8cm [3.1in]|
|Operating Temp||-20C to 50C [0F to 120F]|
|Run time (basic usage)||5 hours|
|User Power||Unregulated 12V-16.8V|
|Motors||2050KV inrunner Brush-less motors|
|0-4||0%||3-5 business days|
