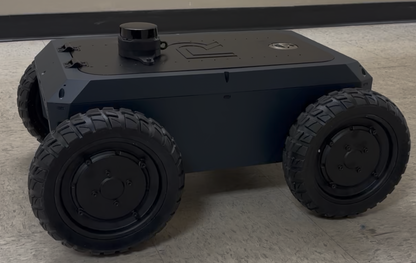

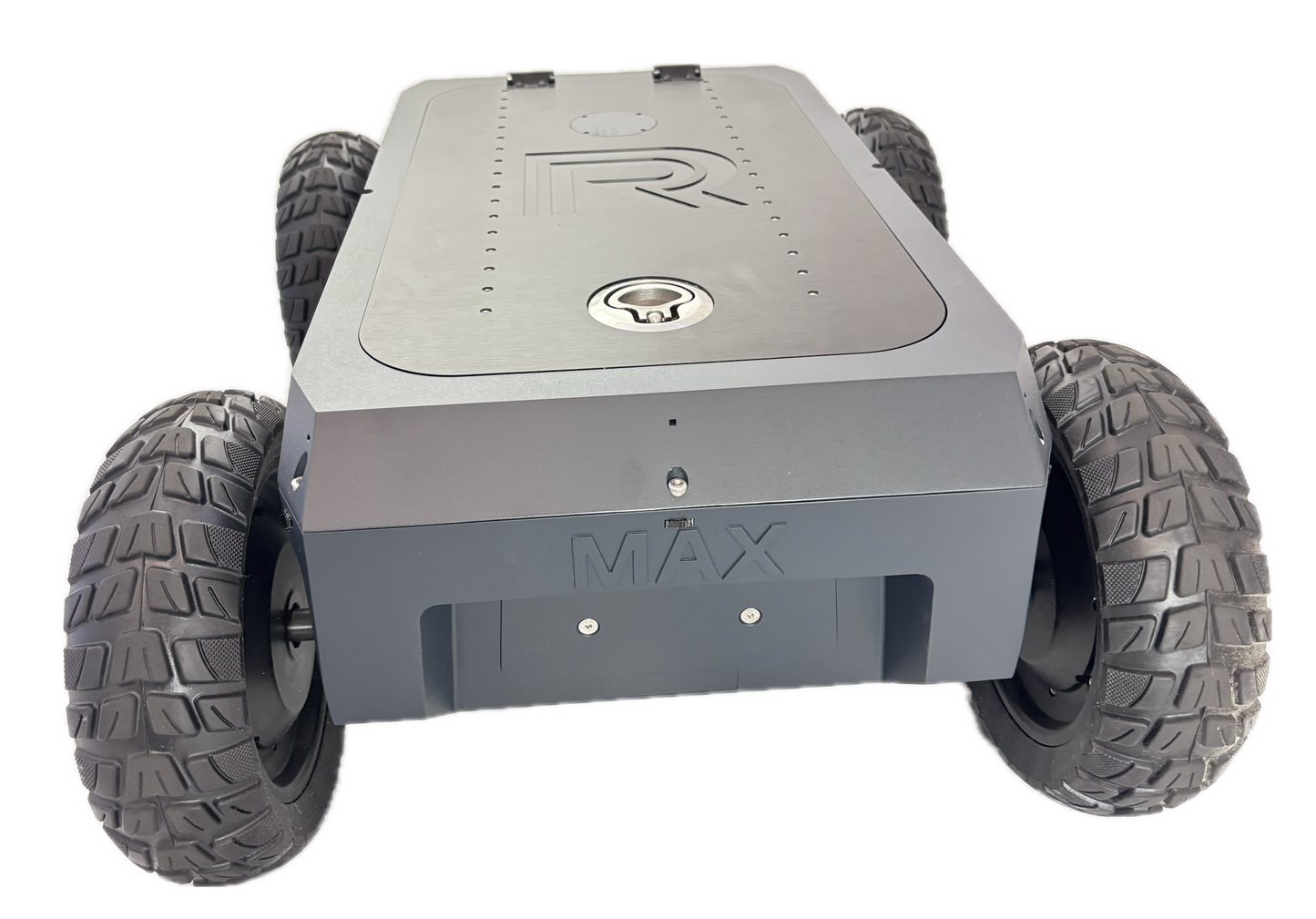

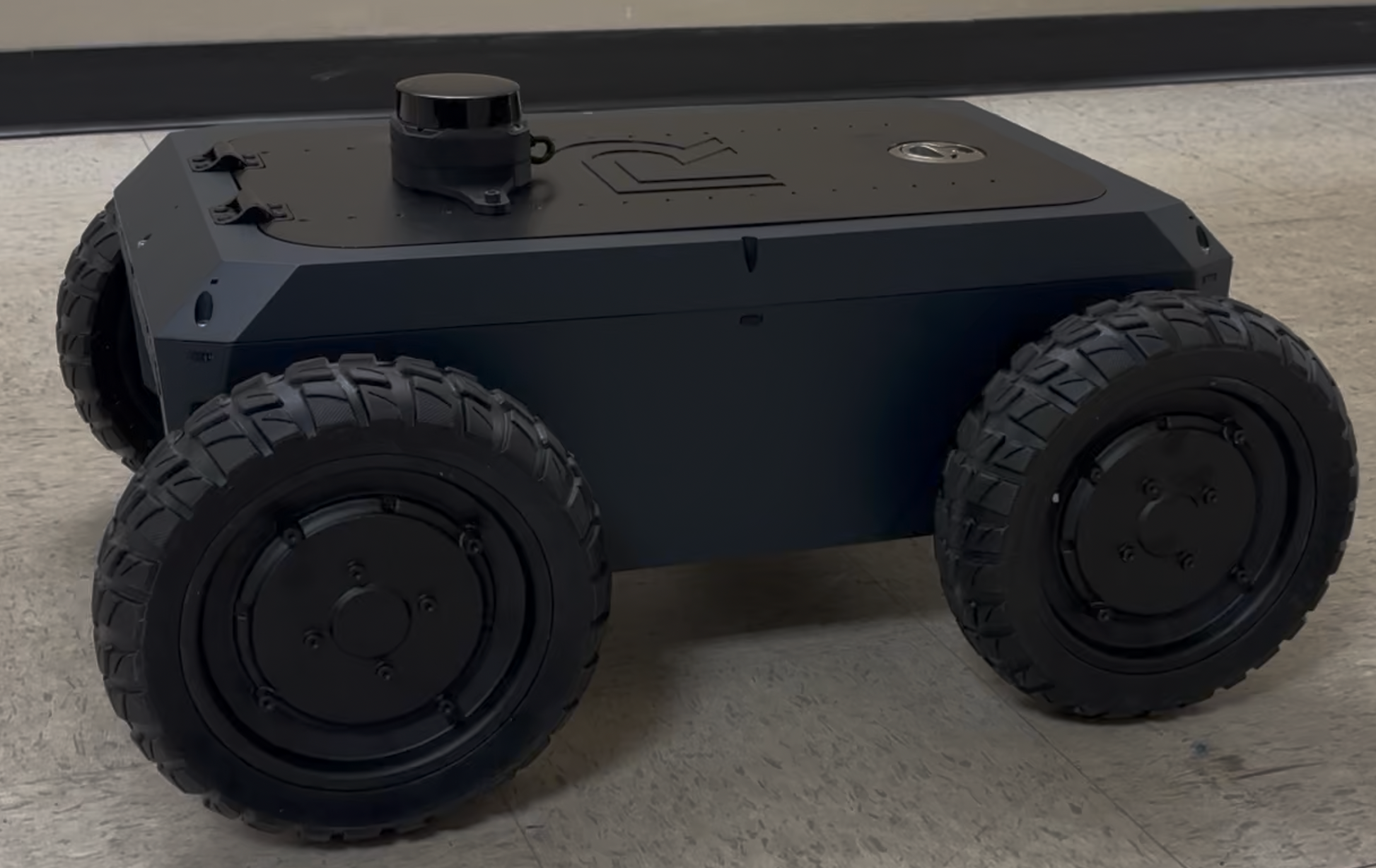

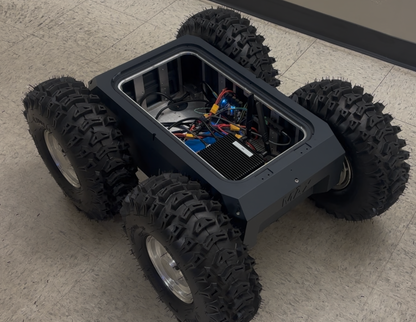

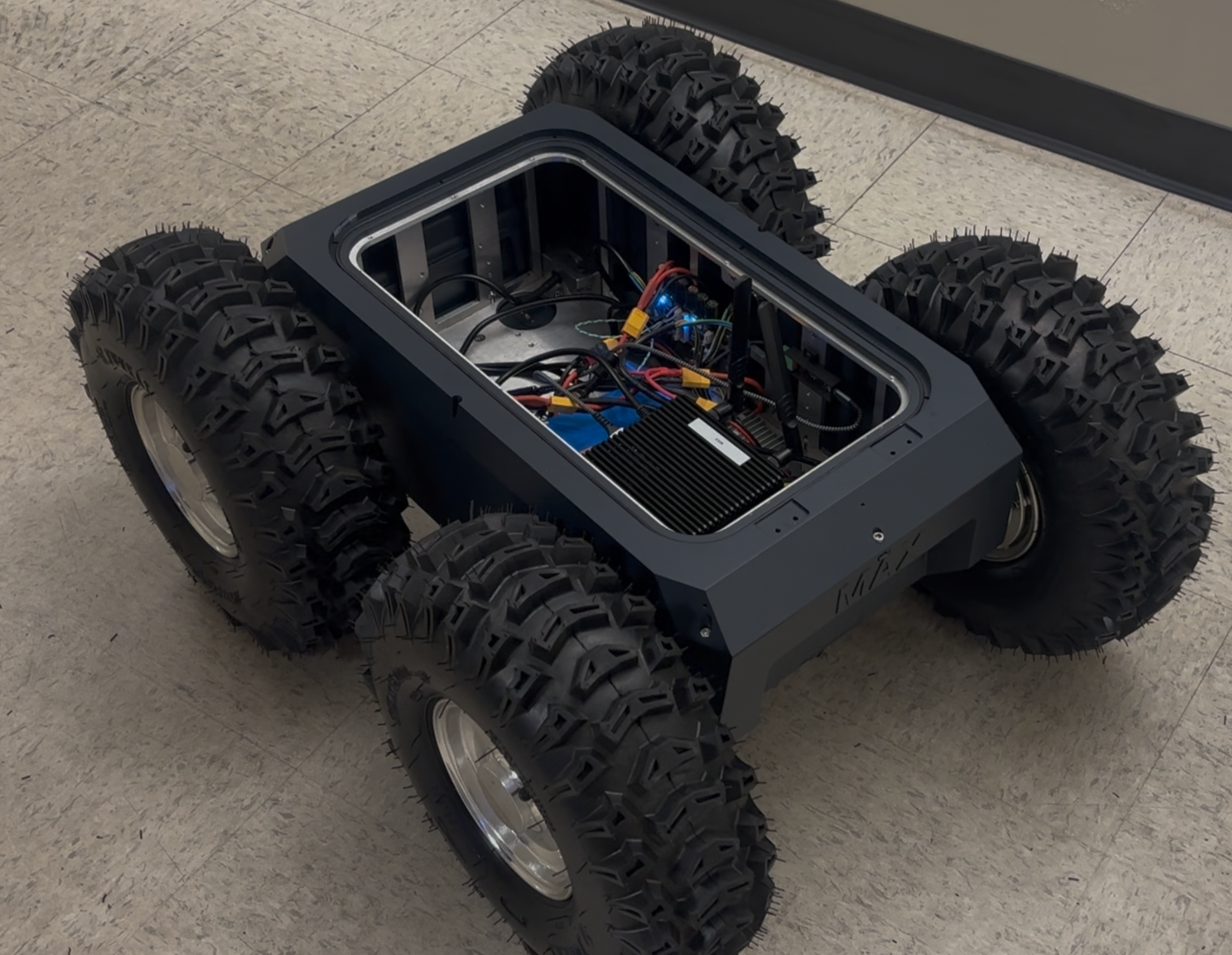

Rover Robotics MAX — Powerful, Versatile, Ready for Anything

The Rover MAX is a rugged, modular robotics platform designed to handle demanding applications with ease. With a 200 lb (90 kg) payload capacity, MAX delivers the strength and stability engineers need for research, prototyping, and industrial automation. Its durable frame, high-torque motors, and flexible mounting system allow you to integrate batteries, sensors, manipulators, and other heavy components without compromising maneuverability or runtime.

MAX: the platform that carries your ideas — and the weight of your ambitions.

Data Sheet

Features

• Geared Pneumatic 15" or 13" wheels (optional 10" or 6.5" flat free wheels)
• 100lb total weight (without payload or sensors)
• 250lb payload capacity (not including robot total weight)

• Length: 950mm
• Width: 600mm
• Height: 375mm (with 15" wheels)
• Ground Clearance: 17.5cm (w/ 15" wheels)

• ROS2 Ready
• 4+ Hour Battery Life
• Ultra Quiet Hub Motors
• Stainless Steel Re-enforced Frame

• On Top Payload Computer (purchase separately)
• Compatible With Virtually Any Lidar/Camera/Sensor
• Charging Dock Compatible (purchase separately)
• 36V battery
• 19V barrel jack output
• E-Stop
• IP54 Compliant
• Made in America
