4WD Rover Pro
4WD Rover Pro
Regular price
$9,200.00 USD
Regular price
Sale price
$9,200.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

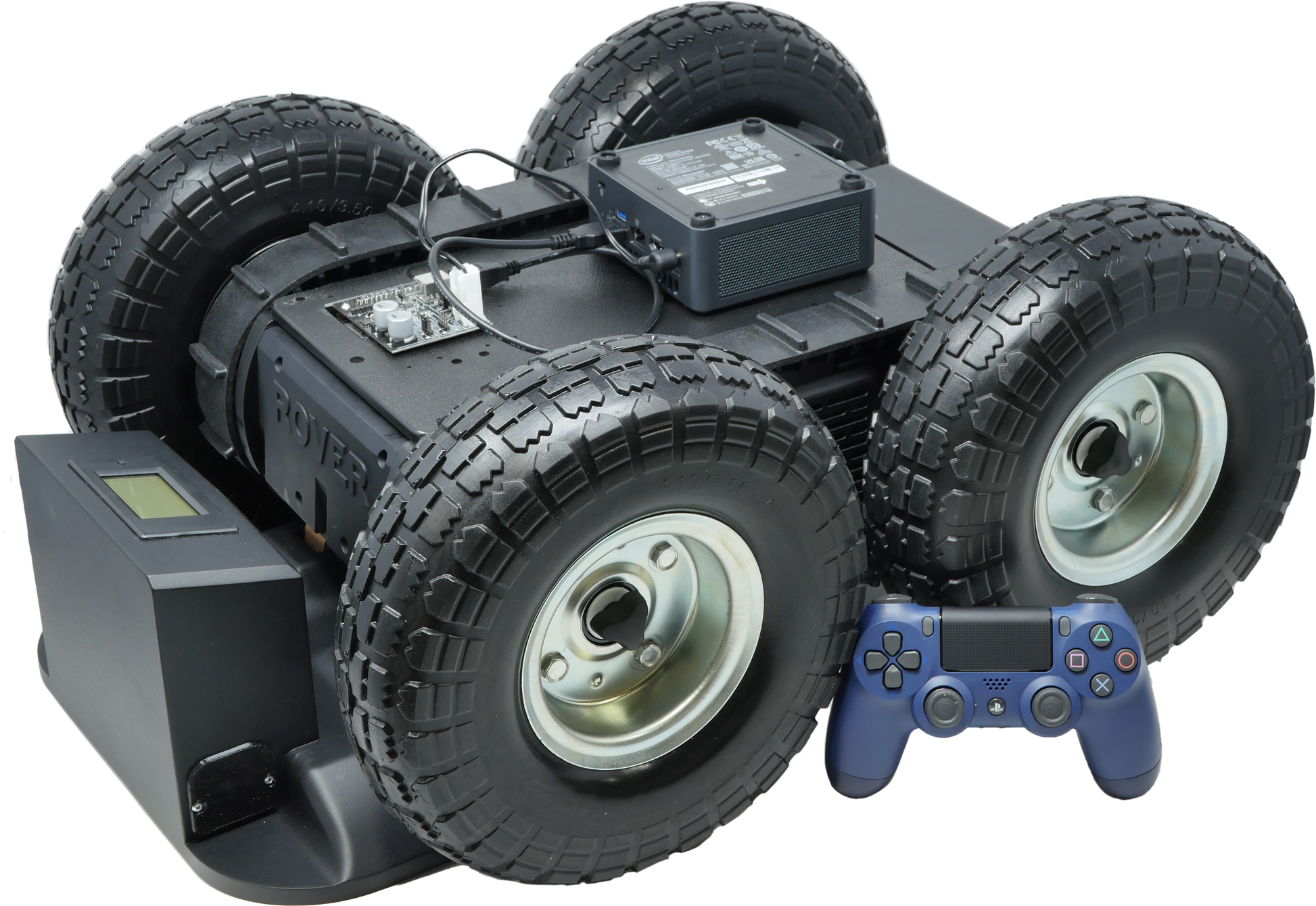

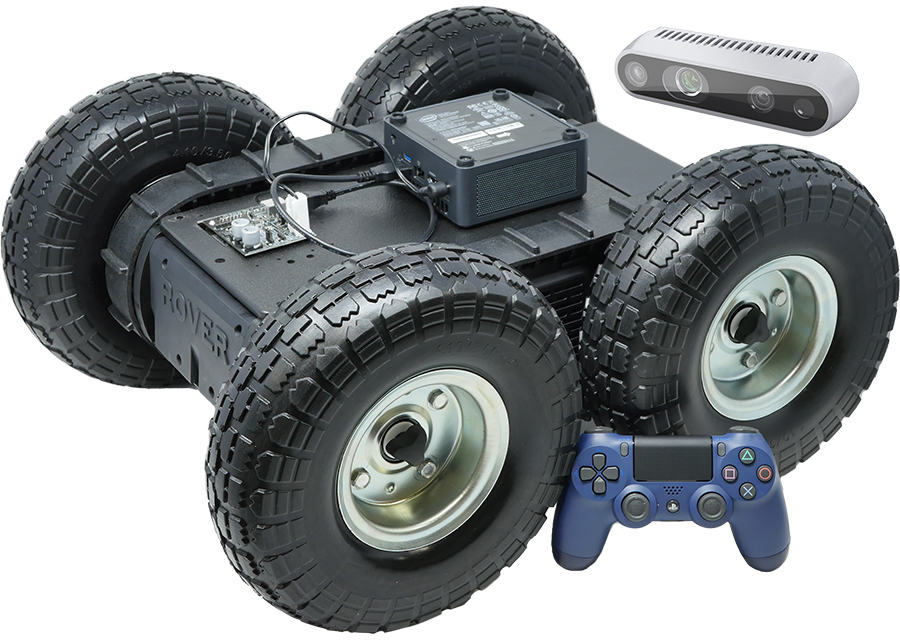

Note: All variants come with one battery and charger. Additional batteries, chargers, drive kits, and accessories can be purchased separately. You can also contact us for any custom configurations.

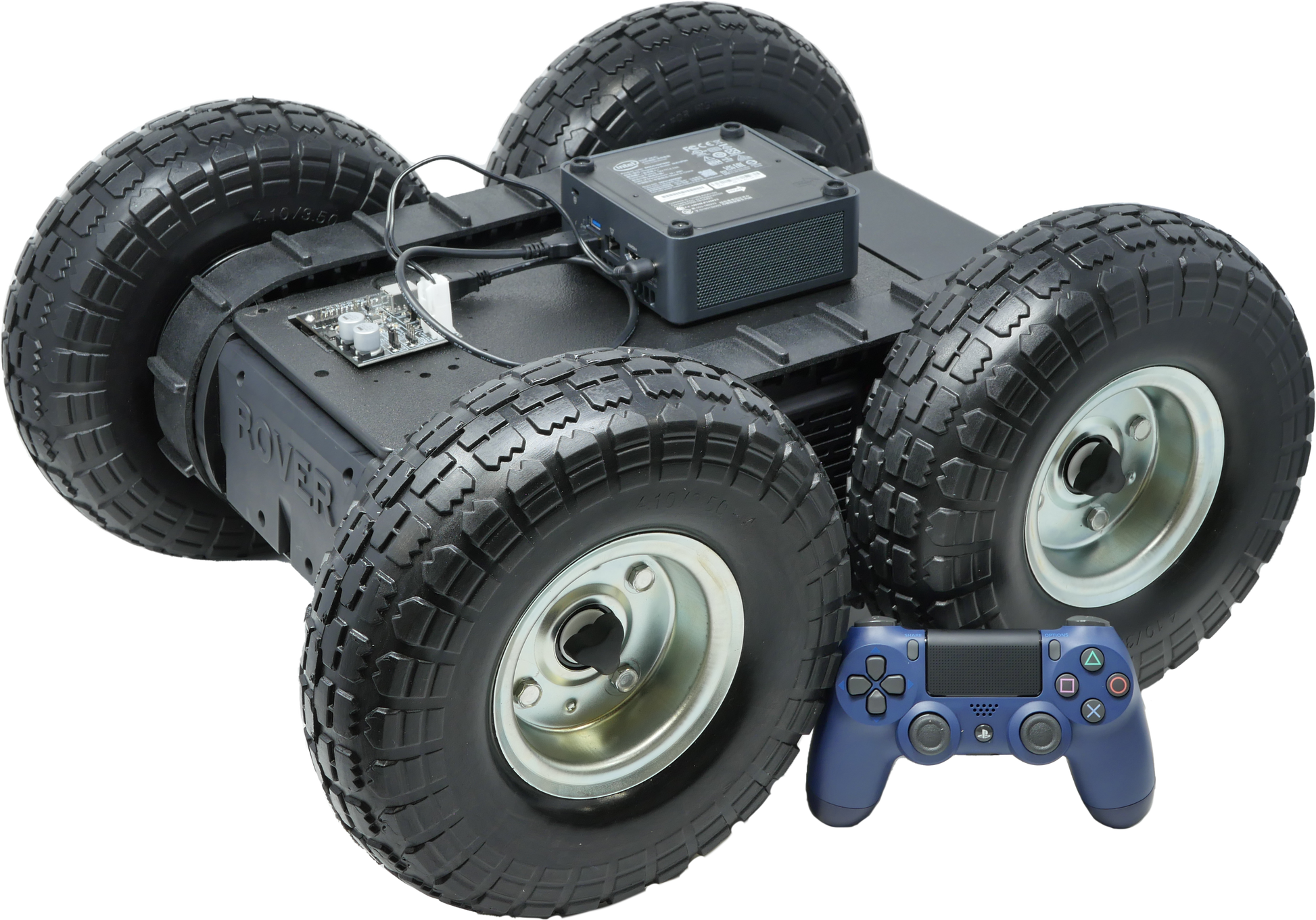

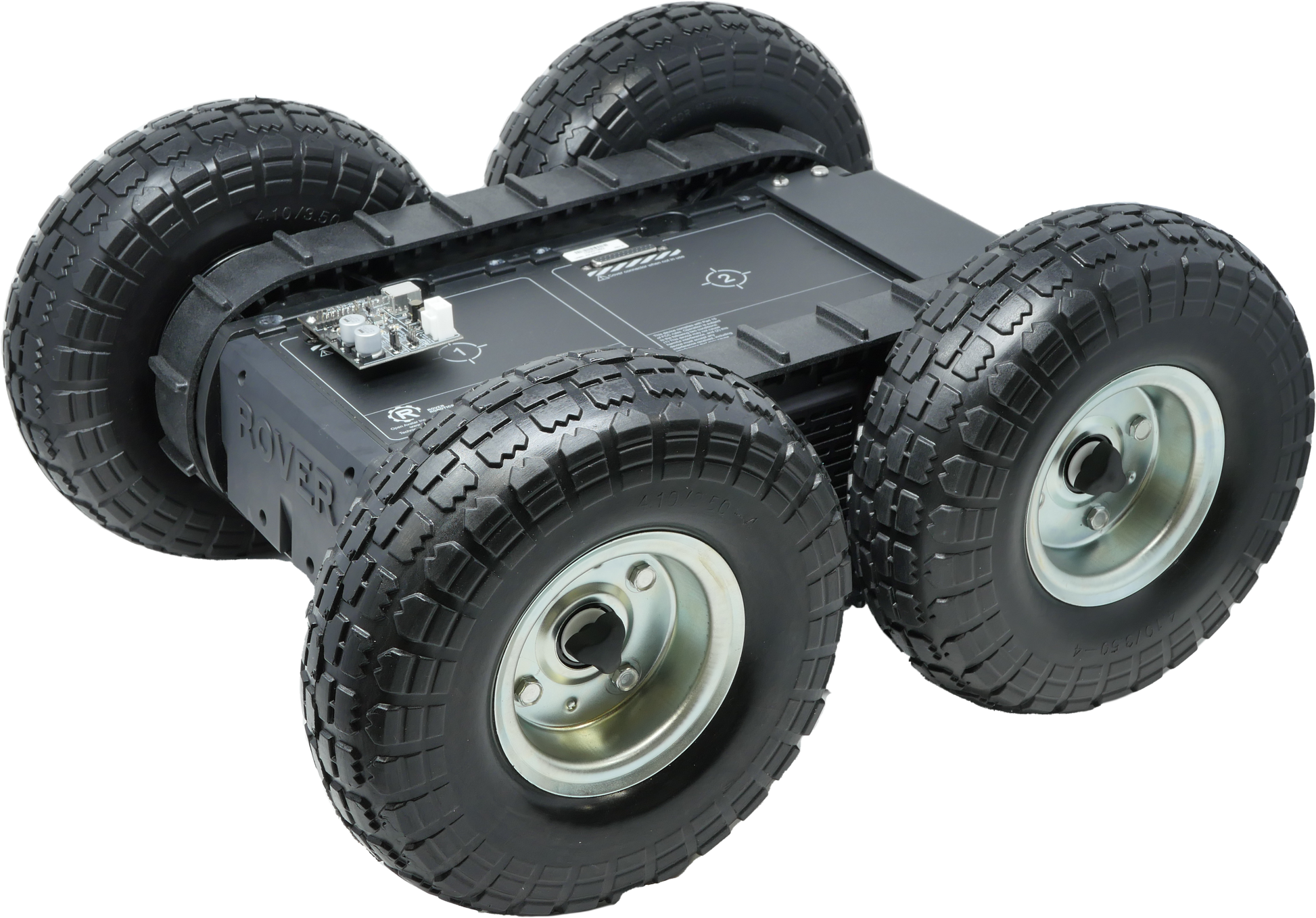

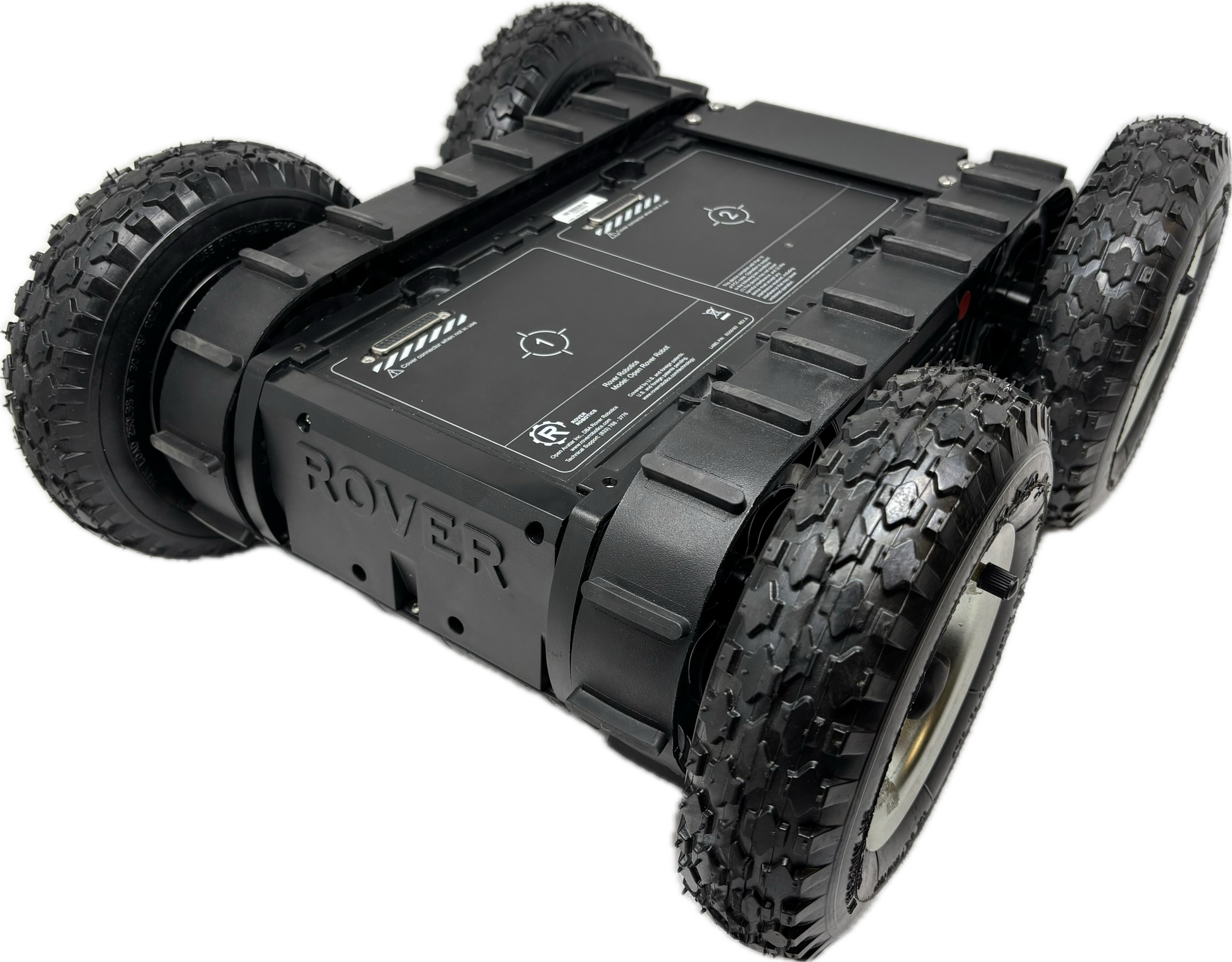

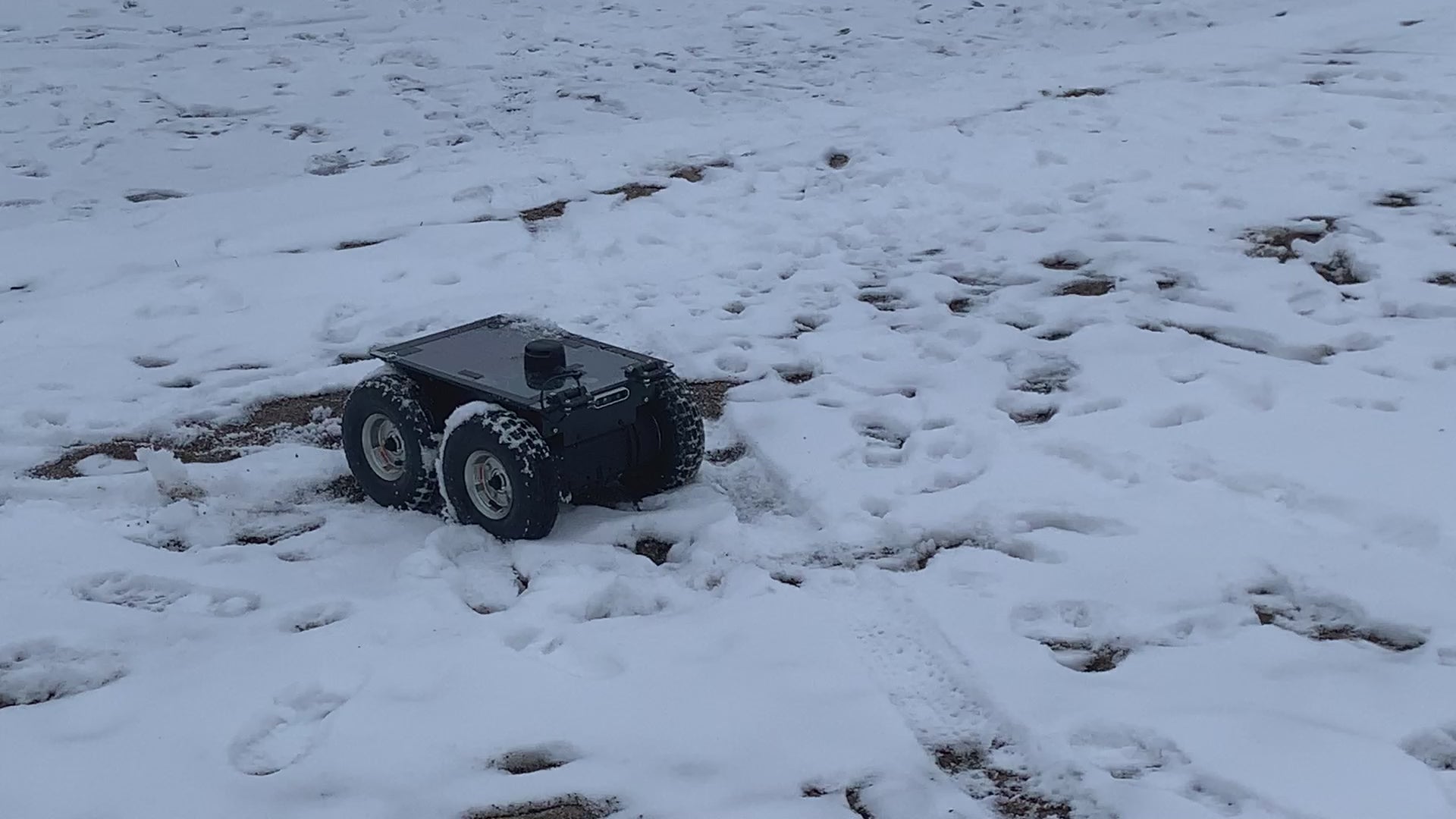

The Rover Pro is a mobile robot that can withstand any type of environment. With an IP67 rating these robots can be outside in any weather conditions. Perfect for development of an AMR fleet or deployment as a single UGV on a mission. The high-quality brush-less motors offer more longevity, higher torque and quieter operation than brushed motors. The high capacity military grade lithium ion battery is state of the art in both capacity, safety and reliability. The Rover Pro is our most popular robot with over 1,000 units shipped worldwide.
All our robot computers are configured with ROS2 Humble by default, if you need another configuration please let us know.
Getting Started
|
Motors |
The Rover Pros use high torque 2050KV in-runner brush-less sensored motors. By using brush-less motors it ensures our Rover Pros last a long time. In-runner simply refers to the fact that the rotor is in the middle. 2050KV refers to how fast the motor spins per volt that is applied. Lower values imply that the motor has more torque, and this is one of the lowest KV motors on the market, in fact we customize them to lower the KV rating. Sensored means that there is a built in hall effect sensor which allows the motor to spin start from a stop and spin slower than a sensor-less motor. |
|
Battery
|
The Rover Pros use a military-grade high density lithium-ion battery pack with built in over-current and under-voltage protection, state of charge monitoring, temperature monitoring, current monitoring, and voltage monitoring. The operating voltage of the battery is 12V-16.8V. If more than 20A is ever pulled from the battery, it will shut itself off safely. All of the data from the battery is exposed with our ROS driver. |
| Description | Value |
| Dimensions | 62cm x 39cm x 25.4cm [24.4in x 15.4in x 10in] |
| Weight | 11kg [25lbs] |
| Max Speed | 2.5m/s [5.6mph] |
| Payload Capacity | 50kg [110lbs] |
| Ground Clearance | 8cm [3.1in] |
| Operating Temp | -20C to 50C [0F to 120F] |
| Operation Time |
1-2 hours drive time/5 hours idle |
| User Power | Unregulated 12V-16.8V |
| Shaft Material | 304SS |
| Motors | 2050KV inrunner Brush-less motors |
| IP Rating | IP67 |
| Quantity | Discount | Lead Time |
| 0-4 | 0% | 3-5 business days |
| 5-9 | 3% | 2-4 weeks |
| 10-24 | 7% | 4-6 weeks |
| 25-49 | 12% | 6-8 weeks |
| 50-99 | 18% | 8-10 weeks |
| 100+ | 25% | 10-12 weeks |
